Aqua Best UV-Ultraviolet 72 GPM

Aqua Advanced UV-Ultraviolet 72 GPM System

The Aqua Advanced UV-Ultraviolet 72 GPM System is a high-capacity water disinfection solution engineered for demanding applications that require rapid and effective purification. With an impressive flow rate of 72 gallons per minute (273 liters per minute), this system delivers safe, clean, and reliable water, ensuring the removal of harmful bacteria, viruses, and other pathogens without the use of chemicals. It is the ideal choice for large-scale residential complexes, hotels, hospitals, schools, factories, and commercial facilities where high water volumes and uncompromised purity are essential.

Constructed with premium-grade stainless steel 304, the UV chamber is built for durability, corrosion resistance, and long service life. With a 6-inch vessel diameter, it supports higher flow capacity while maintaining maximum UV light exposure for effective disinfection.

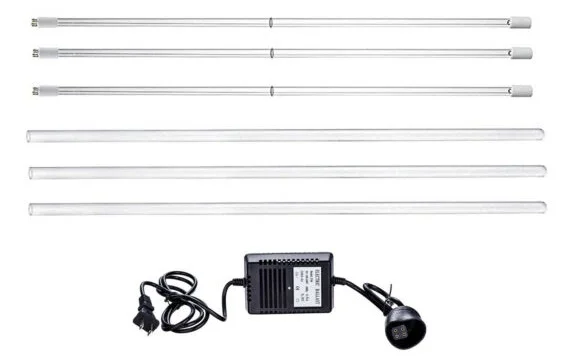

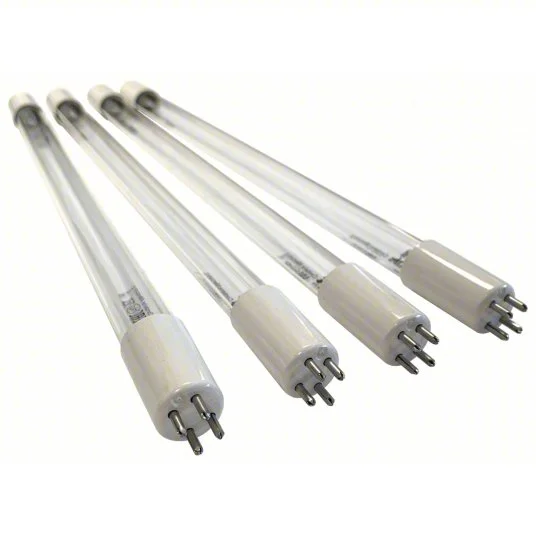

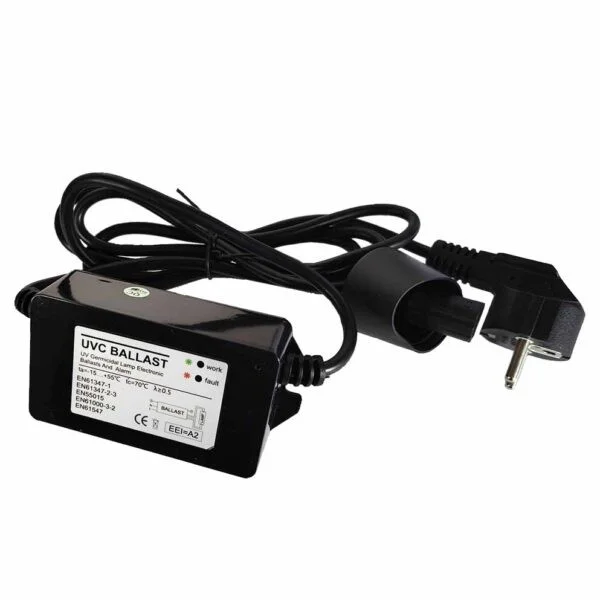

The Aqua Advanced 72 GPM system features six UV lamps rated at 39W/425mA each, housed in six protective quartz sleeves for optimal light transmission and performance. These are powered by six reliable electronic ballasts (20–40W each) that ensure stable operation and long lamp life.

For enhanced reliability and safety, the unit is equipped with a lamp failure device, UV light monitor, and an accumulated timer to provide continuous performance tracking. These features allow for early detection of operational issues and ensure consistent delivery of pure, disinfected water.

Operating on 110/220V, 50/60Hz, the system is designed for flexibility and easy integration into existing water treatment setups. With 2.5” male inlet/outlet ports and a ½” drain port, installation is straightforward, making it a practical solution for large-scale water treatment applications.

Key Benefits:

  • High-capacity disinfection at 72 GPM flow rate

  • 100% chemical-free, eco-friendly water purification

  • Strong stainless steel 304 construction for durability

  • Six-lamp design ensures maximum UV performance

  • Equipped with advanced monitoring and safety features

  • Easy installation and integration into large water systems

Specifications:

  • Material: Stainless Steel 304

  • Vessel Diameter: 6”

  • Flow Rate: 273 L/min (72 GPM)

  • Dimensions (L/H/D): Standard industrial design

  • Electrical: 110/220V, 50/60Hz

  • Inlet/Outlet Port: 2.5” Male

  • Drain Port: ½”

  • Quartz Sleeves: 6

  • Lamps: 6 × 39W / 425mA

  • Ballasts: 6 × 20–40W

  • Lamp Failure Device: Yes

  • UV Light Monitor: Yes

  • Accumulated Timer: Yes

The Aqua Advanced UV-Ultraviolet 72 GPM System is the ultimate solution for facilities needing fast, effective, and chemical-free water disinfection at high flow rates, ensuring long-term performance and continuous water safety.

Facebook
Email

AQUA BEST PRODUCTS

Product Full Description

Aqua UV-Ultraviolet 72 GPM Water Purification System – Top-Tier, High-Capacity Water Disinfection

The Aqua UV-Ultraviolet 72 GPM Water Purification System is a top-tier disinfection solution designed for large-scale residential, commercial, and institutional applications. Utilizing advanced UV-C technology, this high-performance system ensures rapid and comprehensive sterilization of water, effectively eliminating 99.99% of bacteria, viruses, protozoa, and other pathogens without the use of chemicals.

With an impressive flow rate of 72 gallons per minute (272 liters per minute), the Aqua UV 72 GPM system is engineered to handle the demanding requirements of villas, hotels, hospitals, schools, factories, and commercial facilities. Its robust stainless steel chamber enhances UV light penetration, maximizing disinfection efficiency and ensuring long-term reliability.


Why Choose the Aqua UV 72 GPM System?

For facilities that rely on a large, continuous water supply, safety and consistency are paramount. Traditional chemical-based disinfection methods can leave harmful byproducts, alter the taste of water, and require ongoing monitoring. The Aqua UV 72 GPM system provides a chemical-free, eco-friendly alternative that safeguards water quality while ensuring compliance with stringent health and safety regulations.

This system offers continuous 24/7 disinfection, making it ideal for environments where uninterrupted pathogen protection is non-negotiable. With its high flow capacity and energy-efficient design, it provides peace of mind, reliability, and cost-effective operation for both residential compounds and commercial establishments.


Key Features

  • High Flow Rate Capacity: Treats up to 72 GPM (272 liters per minute), suitable for large residential estates, commercial buildings, and institutional use.
  • Advanced UV-C Technology: Uses ultraviolet light at 254 nm wavelength to disrupt and inactivate microorganisms at the DNA level.
  • Durable Stainless Steel Chamber: Corrosion-resistant construction that improves UV light penetration and ensures system longevity.
  • Chemical-Free Disinfection: Eliminates pathogens without altering water’s natural taste, odor, or pH.
  • Energy-Efficient UV Lamp: High-output UV lamp delivers maximum sterilization while consuming minimal energy.
  • Simple Installation & Operation: Designed for straightforward integration into residential or commercial water lines.
  • Low Maintenance Requirements: Annual lamp replacement and quartz sleeve cleaning keep the system running efficiently.
  • Continuous Protection: Provides reliable water disinfection around the clock.

Benefits of UV Water Purification

  1. Microbiological Safety: Neutralizes bacteria, viruses, and protozoa, including E. coli, Giardia, Salmonella, Hepatitis, and Cryptosporidium.
  2. Eco-Friendly Treatment: No chlorine or chemicals required—environmentally safe and sustainable.
  3. Preserves Water Quality: Maintains natural clarity, taste, and freshness of drinking water.
  4. Cost-Effective Solution: Low energy consumption and minimal maintenance reduce long-term costs.
  5. High-Capacity Performance: Handles large water volumes for multi-point usage in residential or commercial facilities.
  6. Peace of Mind: Ensures compliance with global water safety standards for residential, commercial, and institutional use.

Applications of Aqua UV 72 GPM System

  • Large Villas & Residential Compounds: Provides safe, microbiologically pure water across multiple kitchens, bathrooms, and outlets.
  • Hotels & Resorts: Ensures safe water for guests, restaurants, pools, and recreational facilities.
  • Hospitals & Healthcare Facilities: Provides sterile water for patients, laboratories, and medical equipment.
  • Schools & Institutions: Ensures safe drinking water for hundreds or thousands of users daily.
  • Restaurants & Food Services: Guarantees pathogen-free water for food preparation and beverages.
  • Factories & Light Industrial Use: Supports industrial processes requiring reliable pathogen-free water.
  • Commercial Buildings: Ideal for offices, gyms, and large-scale facilities.

Technical Specifications

  • System Capacity: 72 GPM (272 liters per minute)
  • Disinfection Method: UV-C Light (254 nm wavelength)
  • Efficiency: 99.99% elimination of harmful microorganisms
  • Chamber Material: Industrial-grade stainless steel
  • Installation Type: Point-of-entry (POE) or point-of-use (POU)
  • Power Supply: Energy-efficient UV lamp system
  • Maintenance: Annual UV lamp replacement & quartz sleeve cleaning
  • Applications: Large residential, commercial, institutional, and light industrial facilities

Why Aqua?

Aqua is a recognized leader in water treatment systems, providing innovative and reliable solutions trusted worldwide. With a focus on advanced technology, robust design, and user satisfaction, Aqua systems are designed to deliver safe and consistent water purification across all applications.

The Aqua UV 72 GPM system reflects the company’s commitment to sustainability, performance, and customer safety. With professional support, readily available replacement parts, and reliable after-sales service, Aqua ensures customers receive long-term value and peace of mind.


Conclusion

The Aqua UV-Ultraviolet 72 GPM Water Purification System sets a new benchmark in high-capacity, chemical-free disinfection. With its cutting-edge UV technology, stainless steel construction, and exceptional 72 GPM flow rate, it is the ideal solution for residential estates, commercial facilities, and institutions that require a continuous supply of microbiologically safe water.

For those seeking superior performance, reliability, and eco-friendly water purification, the Aqua UV 72 GPM system is the ultimate choice.
